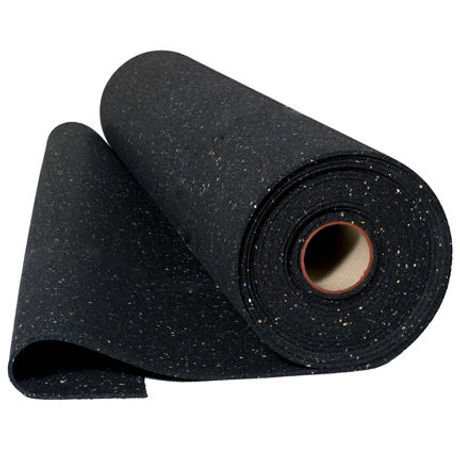

• ​Reemo acoustic underlay is a rubber and cork composite with impact sound Insulation qualities. Available in thicknesses of 3mm & 5mm.

​

• Acoustic underlay insulation to be used on concrete floors. Ceramic, stone, hardwood, laminates and vinyl floor finishes can be laid directly on top.

​

​

​

​

​​

​

​

​

​

​

​

​

• Impact Sound Reduction:   ( on its own )

•   LW = 18dB for 3mm thickness         (EN ISO 140-8)

• Thermal Resistance:

• 0.06m²·K/W for 3mm thickness              (DIN 52612)

​

​

​

​

​

• Thickness: 3mm

• Density: Approx. 640kg/m3

• Tensile strength: 0.5N/mm2                (EN ISO 1798)

• Elongation at Break: 25%                      (EN ISO 1798)

• Fire Resistance: B2





​

​

















This product is designed to be used on concrete floors as a resilient layer to aid impact sound reduction.

​

Please note that this product is NOT to be used in timber framed constructions.

​

​​

• All surfaces should be clean - free of dust, dirt, debris & oil.

• Any holes should be filled & smoothed over.

• Prime the floor with a PVA Sealer if necessary.

• Rolls should be laid flat for 24 hours before installation to acclimatise in a ventilated area.

• Apply 1.5mm of flooring adhesive & leave for 20 minutes untill tacky.

• Now you can lay the Reemo Acoustic Underlay

• When laying, flooring joints should be tightly butted together.

• Leave 2mm clearance gap from the perimeter of the wall / skirting. Fill this gap with AC95 Acoustic Sealant.

• Use a roller to smooth out the underlay.

• DO NOT use mechanical fixings through the underlay.

• Now you are ready to add your floor covering.

​

​

Reemo Acoustic Underlay can be fitted over minimum 65mm sand & cement screeds, minimum 40mm proprietary screeds or levelling compounds.



The structural floor must be a minimum mass of 300Kg/m2 per unit area.

​

​

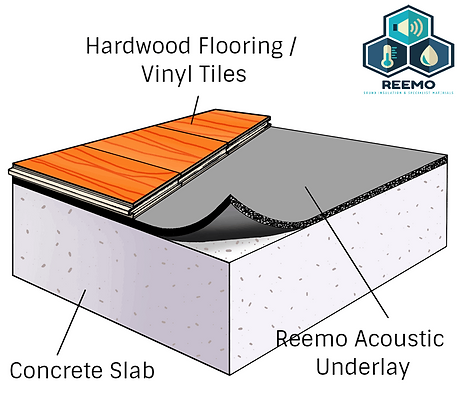

For use with concrete floors including:

• Beam & Block Floor

• Pre-Cast Floor

• In-Situ Concrete Slab Floor

​





​

​

​

​

​

​

​

​

​

​

​

​
